Quantità di ordine minimo:1 Piece/Pieces
Modello: G121XGE-L01

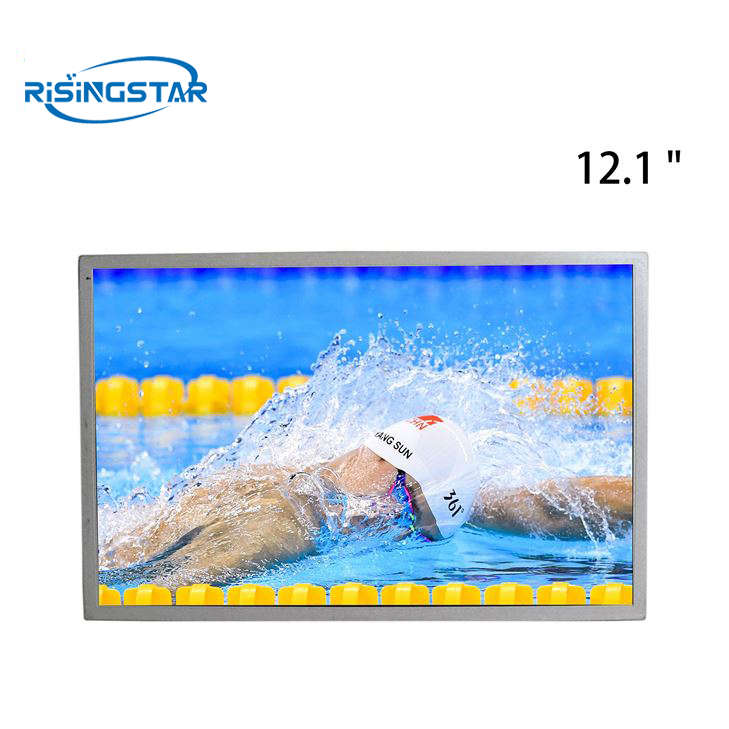

12,1 pollici innolux G121xge-L01 Visibile alla luce del sole LCD Pannello LCD.
| brand | Innolux | Model name | G121XGE-L01 |
| size | 12.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 768(RGB)×1024, XGA, 105PPI | Pixel configuration | RGB vertical bar |
| Display Area | 184.32×245.76(H×V)mm | Surface treatment | Mirror (Haze 0%), Hard coating (3H) |
| Brightness(cd/m²) | 600 cd/m² (Typ.)or customized | Contrast Ratio | 700:1 (Typ.) [transmission] |
| Viewing Angle | 70/70/80/80 (Typ.)(CR≥10) | Outline dimension | 204×260.5×8.9(H×V×D)mm |
| Signal interface | 20 pins LVDS (1 ch, 6/8-bit) ,terminal |
|
|
| work environment | Storage temperature: -40 ~ 85 °C Working temperature: -30 ~ 80 °C |
|
|
