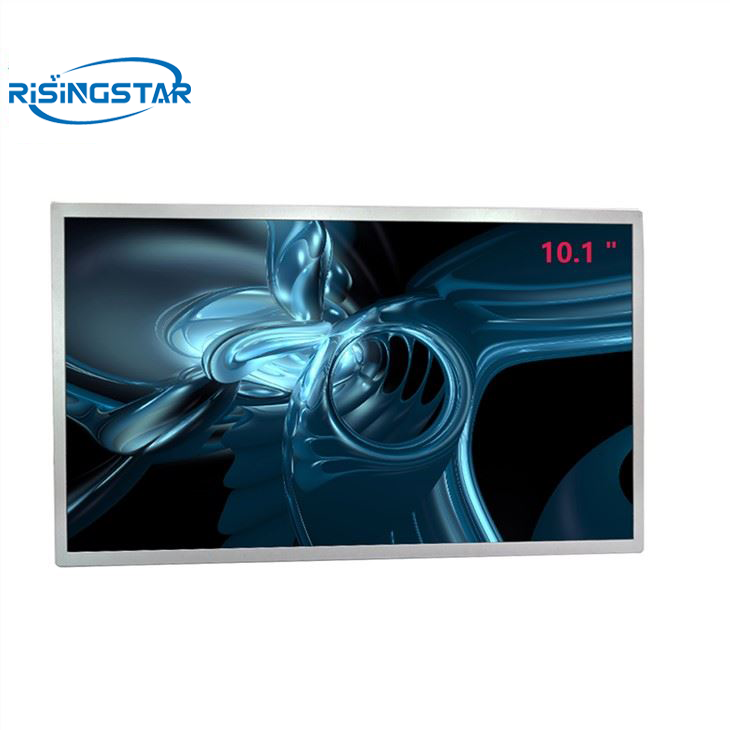

Modello: G101EVN03.0
marchio: Innolux
Size: 10.1-inch
Brightness: 1000-nits
marchio: AUO
Trasporti: Ocean,Land,Air,Express
Luogo di origine: Shenzhen
Porta: Shenzhen
Tipo di pagamento: T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,CIF,EXW
| brand | AUO | Model name | G101EVN03.0 |
| size | 10.1" | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1280(RGB)×800 WXGA 149PPI | Pixel configuration | RGB vertical bar |
| Display size | 216.96(H)×135.6(V) mm | Appearance of size | 227.69×148.31 ×7.75 (H×V×D) mm |
| Brightness(cd/m²) | 1000 cd/m² (Typ.) | Surface treatment | mirror (Haze 0%) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | contrast | 1300 : 1 (Typ.) |
| Signal system | 40 pins LVDS (1 ch, 6/8-bit) , terminal | Apply to | Industrial and outdoor highlighting |
| Maximum rated | Storage temperature: -20 ~ 70 °C Working temperature: -30 ~ 60 °C |
|
|
